Maestro Board + NFC8

The Maestro is a ESP32-based automation board with built-in ethernet, IO, and peripherals built to ensure your project is automated quickly and easily. With x4 inputs, x4 outputs, x1 Relay, you have everything you need in one package.

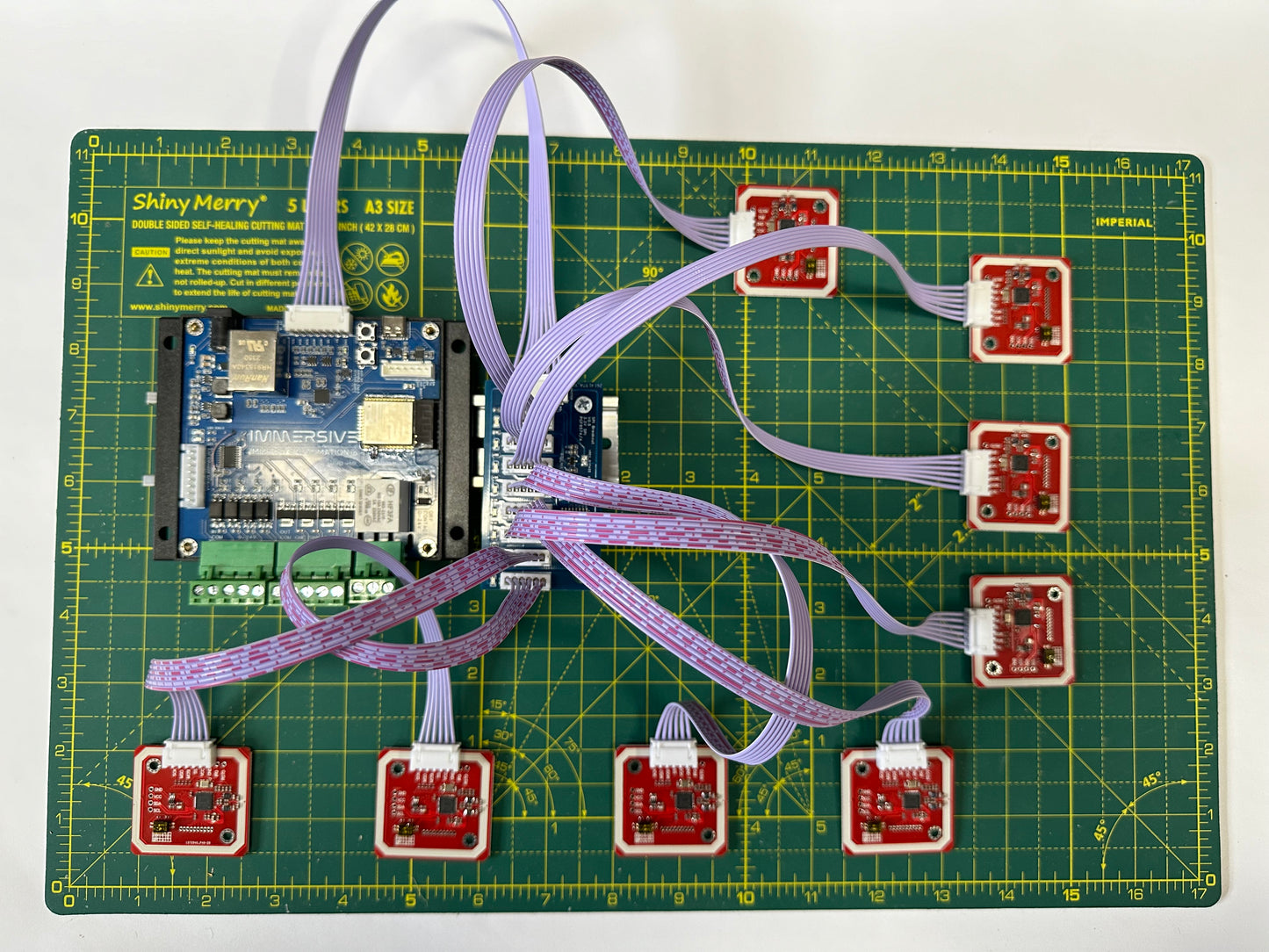

Pair the Maestro with it's flagship partner, the NFC8 Expansion Board for your first multi-channel, networked NFC reader. No more wiring a million relays together in series! Create a puzzle with up to 8 NFC tags and see your guests interact with it in real-time via M3 or it's native webserver down a single ethernet cable. No programming necessary.

No network capabilities? No problem. The Maestro & NFC8 work locally. Just click the program button and the board memorizes the current puzzle configuration.

Want more? Both can be programmed using the recommended ESPHome or other compatible framework. Hardware definition YAML file for ESPHome available that sets up all on board IO.

Maestro Peripherals

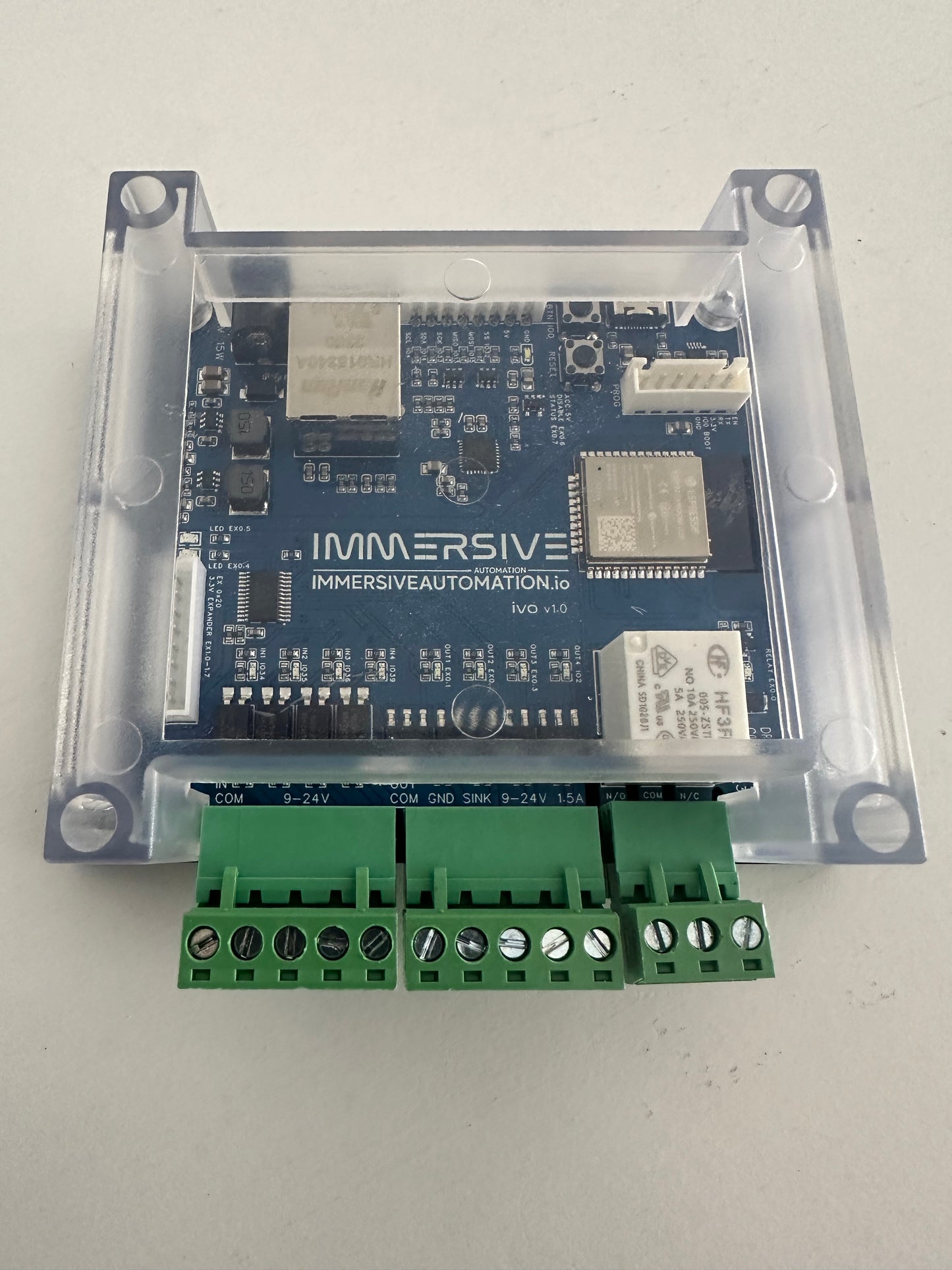

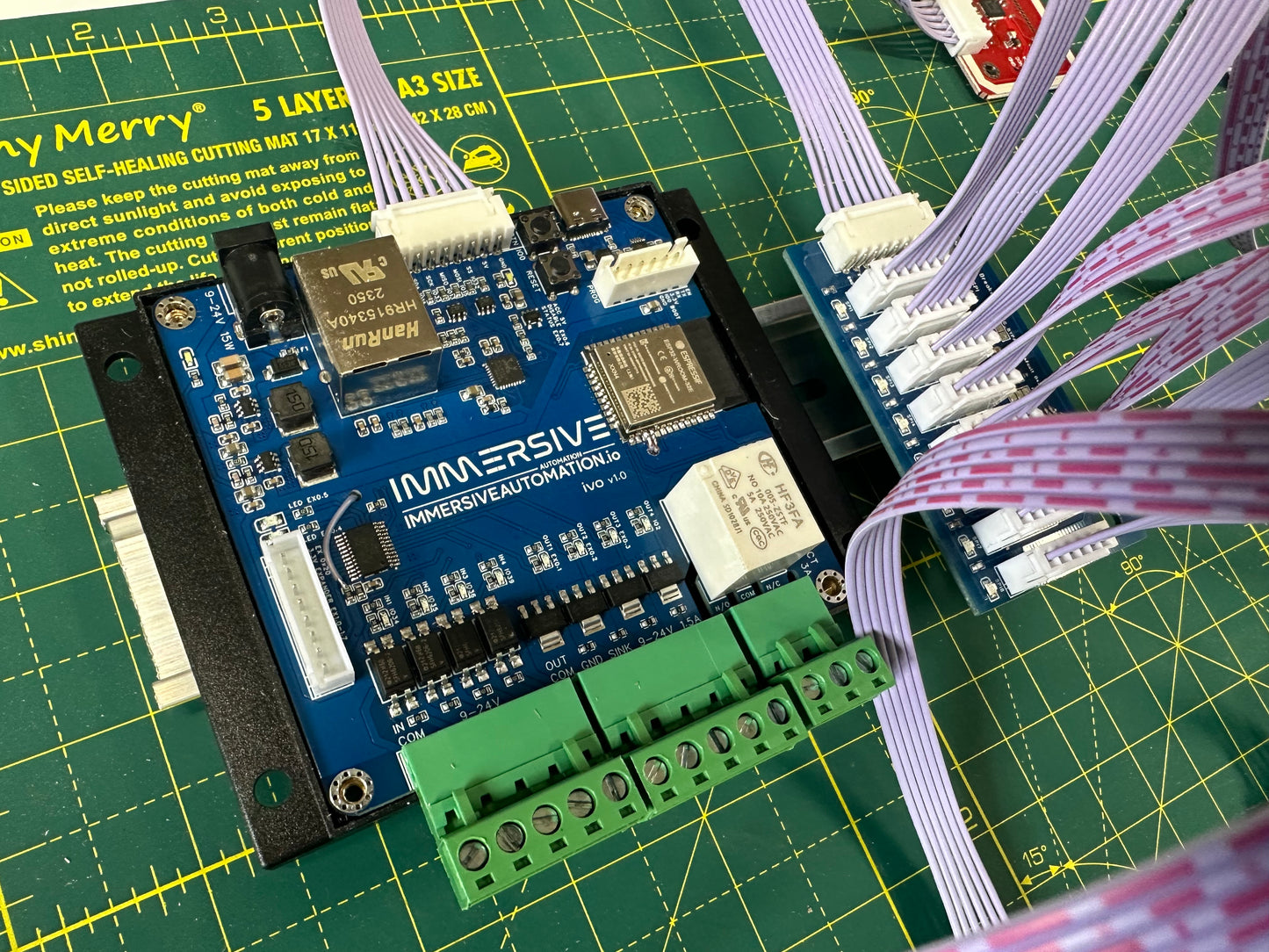

• ESP32-WROOM
• RTL8201F Ethernet
• USB C for Debugging and Programming
• Barrel Jack 5.5mm accessory Power input 9-24v using efficient DC DC converters.
• x8 Pin JST expansion port with 5V 1A protected power output and 6 ESP32 pins available for expansion, ESP32 pins 3.3v only.
• XL9535 Port expander on board to control on board outputs without using limited ESP32 pins
• Additional free 8 XL9535 3.3v IO available on internal 8 pin JST XH header.
• Button on IO0
• x4 Opto-isolated inputs supporting 5-24v sinking or sourcing
• x4 N-channel sinking 5-24v 2A outputs, one of which supports PWM.
• x1 Relay Dry Contact output.
• Protective DIN mount plastic enclosure
• x1 screw terminal to barrel jack adapter included to allow you to use your own 12-24 power, or 12v addon power adapter available

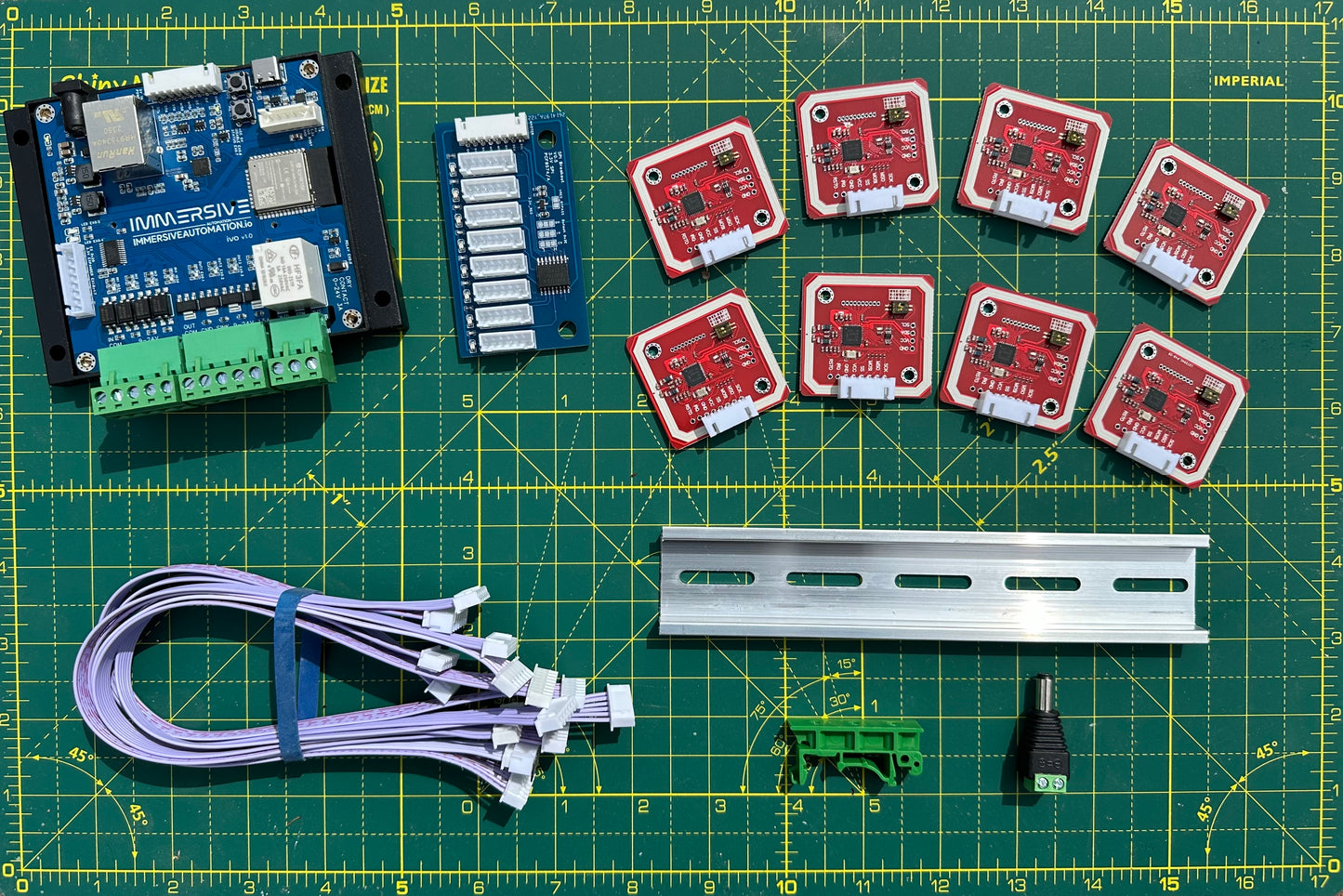

NFC8 Peripherals

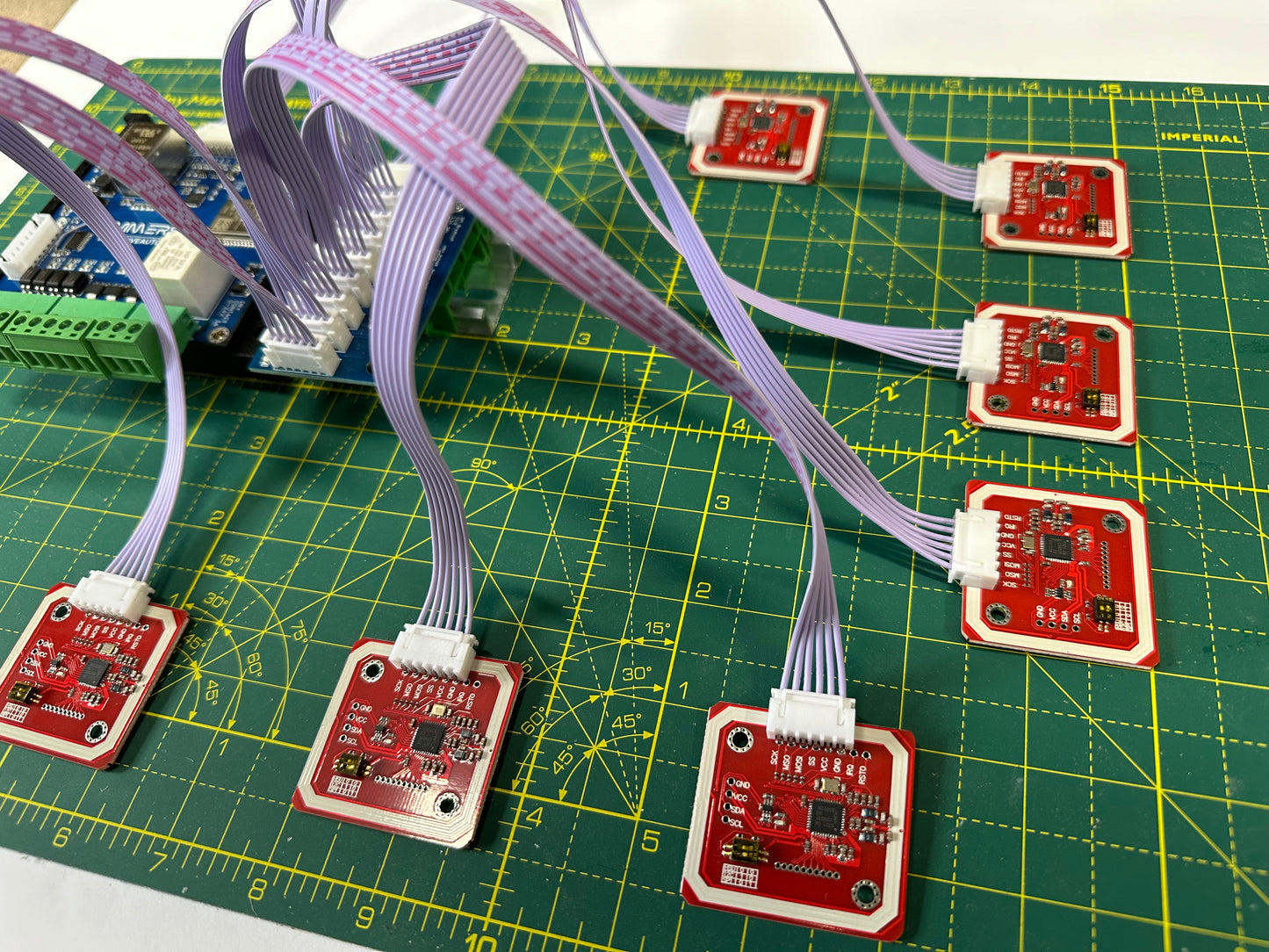

• x1 8-Pin JST cable to connect 8 Port SPI breakout to Maestro
• x8 6-pin JST cables for PN532 readers.
• x8 PN532 NFC readers with soldered 6pin JST ports
• x1 8-Port SPI breakout featuring XL9535 port expander to address each chip select on every port
• x8 NFC215 Card-style Tags
